S63 Engine with Forged Internals | BMW M5/M6/X5M/X6M

S63 Stage 1 Engine - | F06, F10, F12, F13 | M5, M5 Competiton, M6, M6 Competition, X5 M, X6 M

*Note – Core charge may apply. Contact us for details.

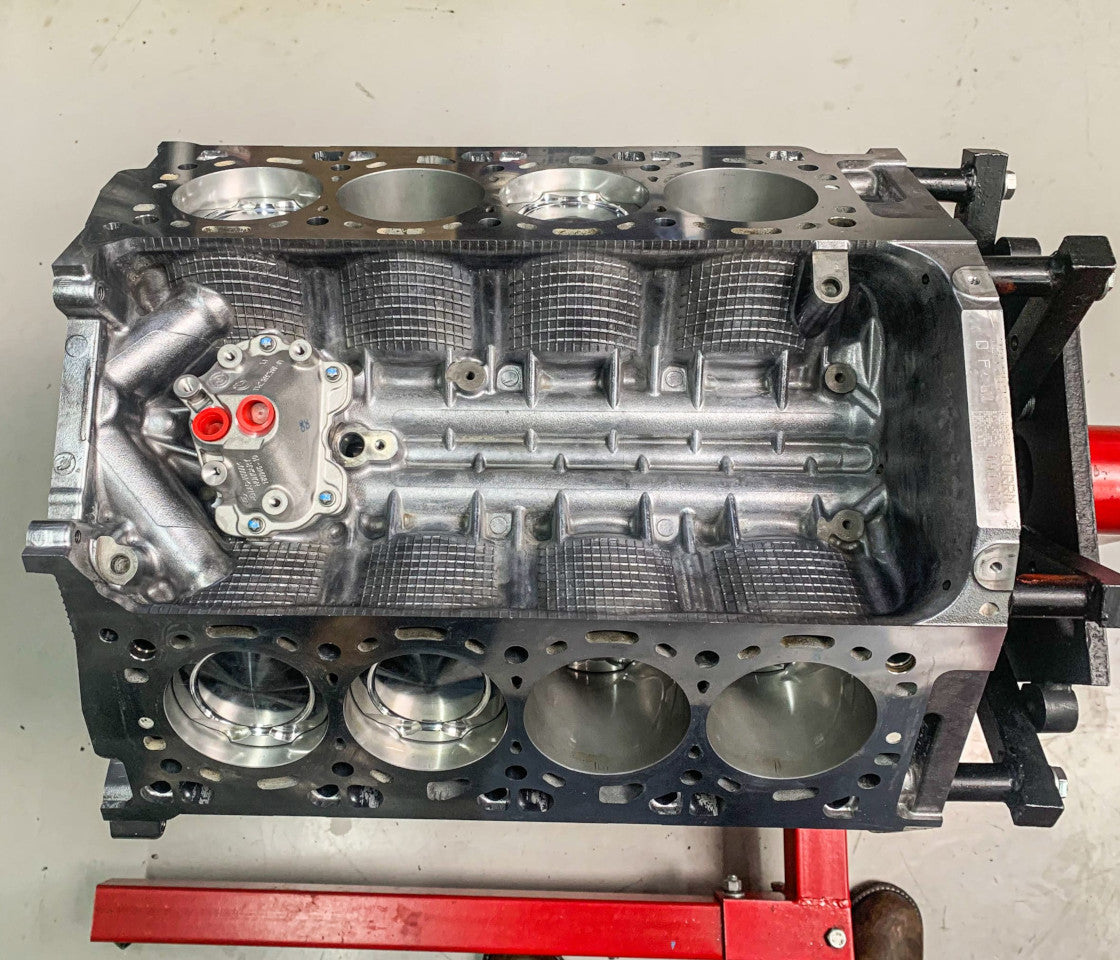

Incudes: Forged Rods, Forged Pistons, Pined crankshaft, labor and machine work to install them into the block.

High performance CarBahn valve springs can be ordered separately.

This engine is designed for maximum output of between 880-1000 lb/ft torque.

This engine is the lower end only. This engine is for owners who have low mileage cars that have not had an engine failure and do not need a complete overhaul but just want a stronger engine for higher power applications. It is designed to make the S63 engine strong enough to handle high boost applications.

The S63TU engine is not designed to have large increase in boost. CarBahn has designed a high-performance engine to handle very high outputs by utilizing higher quality racing components.

The stock engine compression ratio is relatively high due to the Corporate Average Fuel Economy (CAFE) standards which push for consistently higher fuel economy in cars and trucks. However, this increased compression limits engine performance with higher boost settings by decreasing the size of the fuel-air charge in the combustion chamber, forcing the ignition timing to retard far below MBT (mean best timing, the theoretical optimal ignition timing). Therefore, the CarBahn S63 engine has 0.5 less compression to optimize the engine for the increased boost. In an emissions-legal street car, the lowered compression has the added benefit of reducing catalyst inlet temperatures and improved drive-ability on pump gas.

CarBahn History

Steve Dinan has been building high performance and racing engines for BMW’s since 1977! Winning 12 racing championships including 3 prototype championships and two - 24 hours of Daytona. The same engine shop that builds the racing engines also builds the street car engines. This group of talented engineers, Engine machinist and engine builders has built hundreds of engines. From rebuilds to developing engines making over 625hp on an S65 and over 740hp on an S85.

Engine core acceptance parameters

Must be complete core (factory engine, from oil pan to valve cover)

• Block must have no:
  • Holes or cracks in casting
  • Holes or crack in covers
  • Bore damage that cannot be honed out
  • Thrust surface damage
  • Journal surfaces damage
  • Bolt hole damage that can’t be repaired
• Heads must have no:
  • Holes or cracks in casting
  • Holes or crack in covers
  • Thrust surface damage
  • Journal surfaces damage
  • Bolt hole damage that can’t be repaired
• Additional repair charges could apply for damaged items that are not normally changed during an overhaul and cannot be repaired or serviced
  • Valves
  • Crankshafts
  • Camshafts
  • Guides
  • ValveTronic mechanism
  • Vanos mechanism

https://www.youtube.com/watch?v=WSHusoVQm8o

• Warranty & Additional Information
  Our engines are very strong and can often be very reliable even at power levels above what is recommended. The durability usually depends on the quality and the reliability of the tune and other aftermarket components added to the engine management system.

  • Engines with CarBahn Software Tunes
    All engines listed with a stage number are designed to be road car engines and are covered for 2 years, 24,000 miles providing they have a CarBahn tune and there are no other parts on the car that have caused a premature failure.
  • Engines with Another Company's Tune


    All engines listed with a stage number are designed to be road car engines and are covered are covered for 2 year, 24,000 miles providing they you stay under our recommended torque limits. Torque limits are indicated on our web site. Warranty does not cover failures from the tune or aftermarket fuel injection components that caused the failure. It is CarBahn full discretion to determine cause of failure. If Torque limit is exceeded the warranty is for materials and workmanship only.

  • Racing Engines
    Racing engines are designed to be raced and are covered for materials and workmanship only. Racing engines should be rebuilt periodically based on run time or mileage. Warranty does not cover failures from the tune or aftermarket fuel injection components that caused the failure. It is CarBahn full discretion to determine cause of failure.

Designed to be both stronger and more cost-effective than the BMW OEM factory engine, the CarBahn S63 Stage 1 Engine benefits from Steve Dinan's 46 years of race engine-building expertise. His engines have powered multiple championship-winning cars, including three prototype racing titles and two overall victories at the 24 Hours of Daytona (2011-2013).
