Stage 2 Performance Controller Power Package | BMW X3M/X4M
Stage 2 Performance Controller Power Package | BMW X3M/X4M
SKU: CBF9X-9216 Stainless
In stock
Stage 2 Power Package includes:

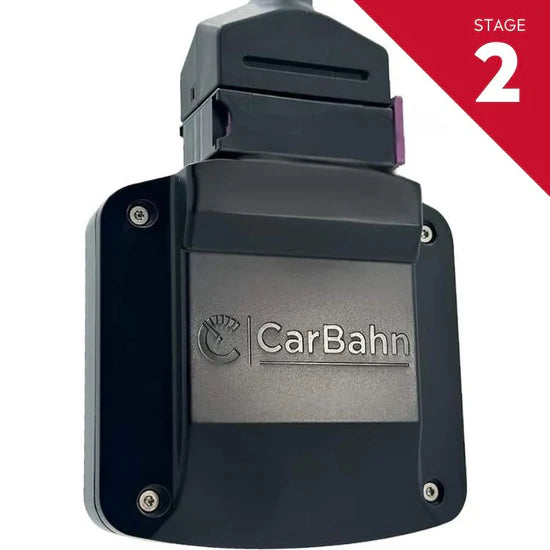

- CarBahn Stage 2 Performance Controller

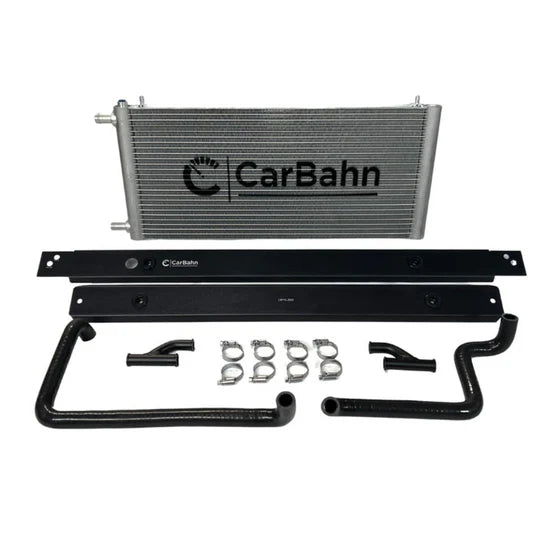

- CarBahn Heat Exchanger

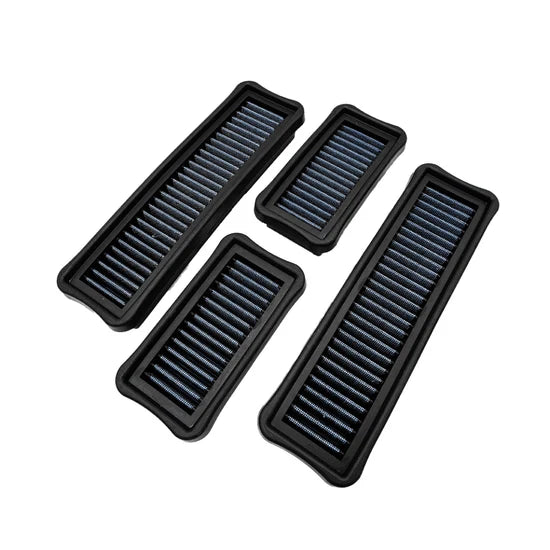

- CarBahn High Flow Air Filters

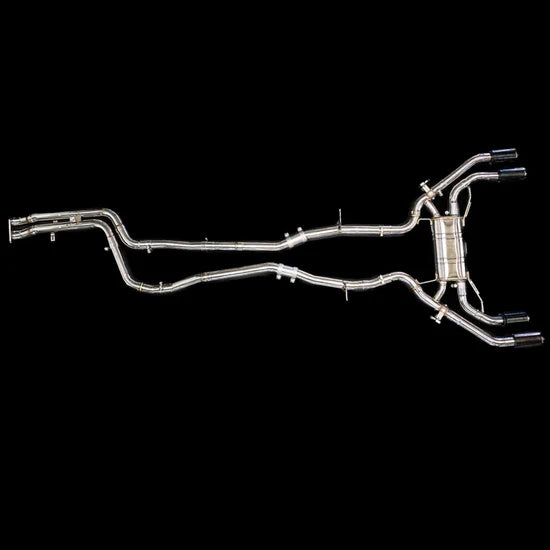

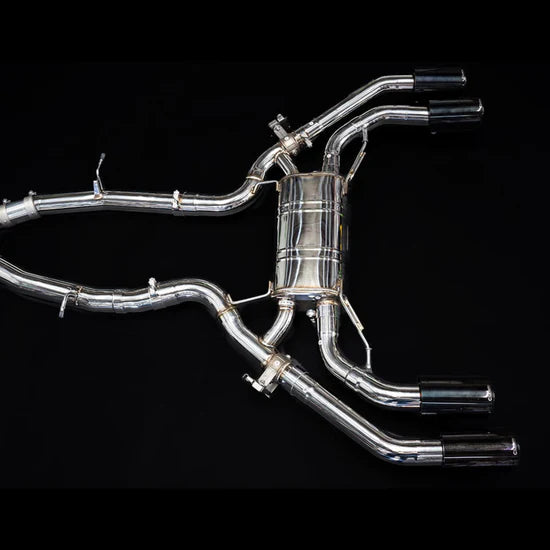

- CarBahn Stainless Steel Exhaust System
Vehicle Fitment & Product Details
- Type: Tuning & Software
- Vendor: CarBahn
- Make: BMW
- Model(s): BMW
- Vehicle Year(s): 2021, 2022, 2023, 2024, and 2025
- Transmission(s): Automatic
- Chassis: F97 and F98
- Body Style(s): SAV
- Drivetrain(s): xDrive
- Part Number: CBF9X-9216, CBF9X-9216W
Base Model
93 Octane
| Calculated Flywheel Power | Measured Wheel Power | |
|---|---|---|
| OEM Stock | 561HP / 535TQ | 460HP / 438TQ |
| Tuned | 679HP / 654TQ | 557HP / 536TQ |
100 Octane
| Calculated Flywheel Power | Measured Wheel Power | |
|---|---|---|
| Tuned | 703HP / 682TQ | 577HP / 560TQ |
Competition Model

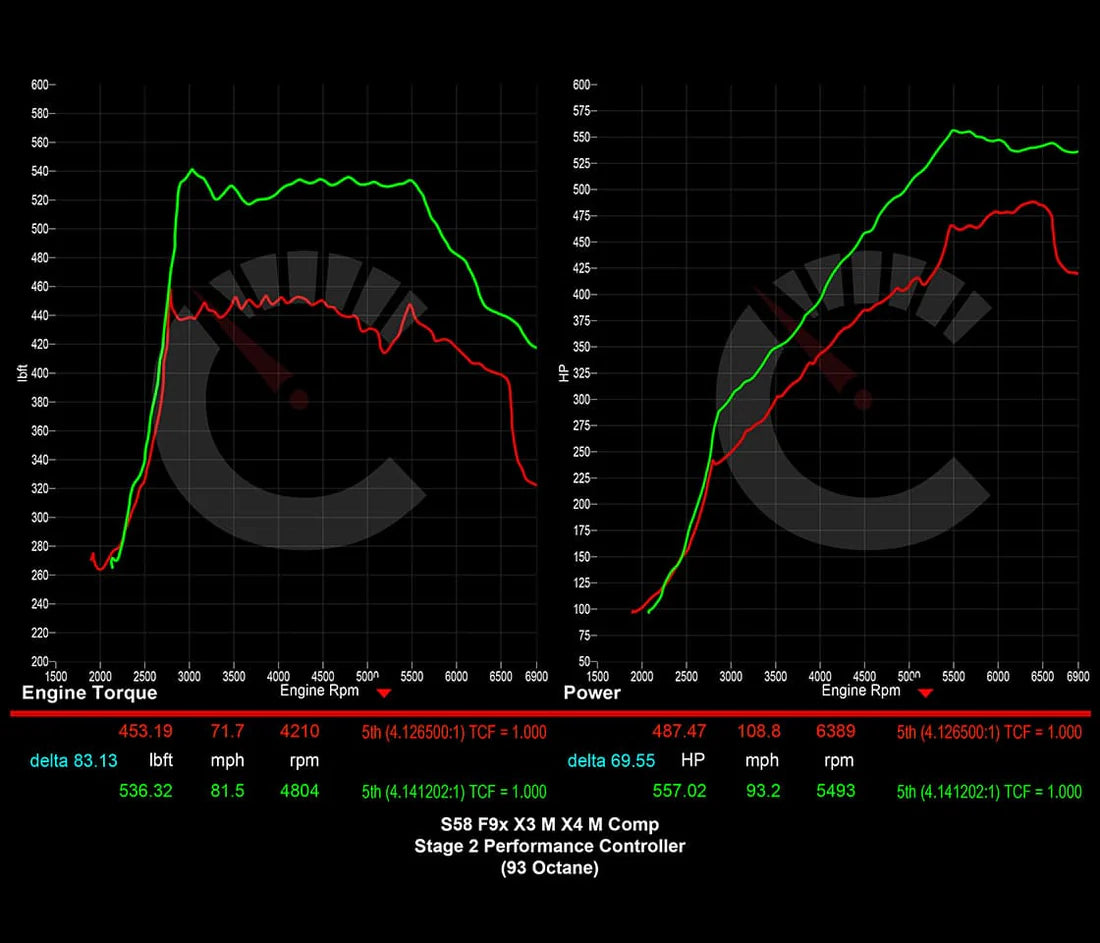

93 Octane
| Calculated Flywheel Power | Measured Wheel Power | |
|---|---|---|
| OEM Stock | 594HP / 553TQ | 487HP / 453TQ |
| Tuned | 679HP / 654TQ | 557HP / 536TQ |

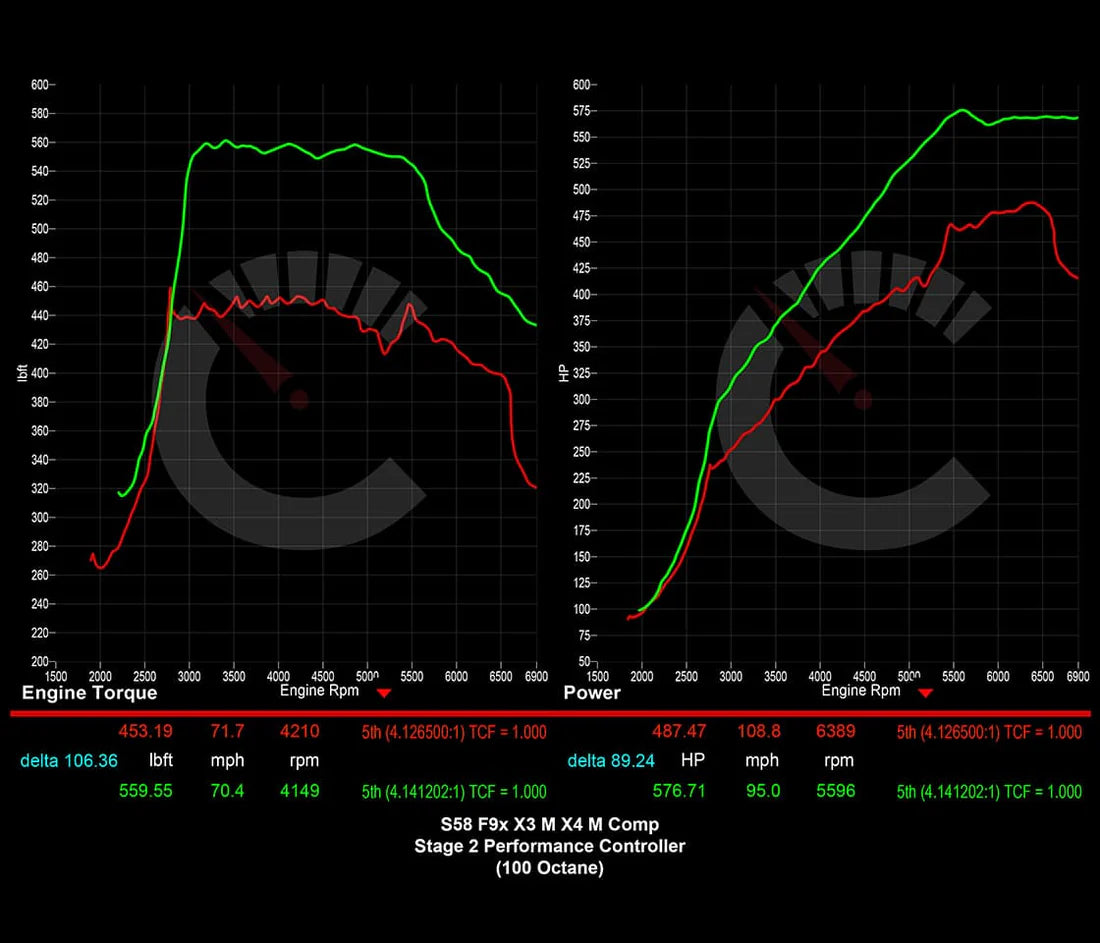

100 Octane
| Calculated Flywheel Power | Measured Wheel Power | |
|---|---|---|
| Tuned | 703HP / 682TQ | 577HP / 560TQ |
has context menu
The CarBahn Performance Controller (CPC) is an easy-to-install electronic control unit (ECU) that significantly boosts the turbocharged cars' horsepower and torque. This plug-and-play unit offers selectable maps, which can be accessed through a smartphone application via Bluetooth.
|
To access this app, you can download them from either the Apple App Store or the Google Play Store.
These maps are specifically designed to optimize performance based on different octane fuel levels. You have the flexibility to choose between 91, 93, and 100 octane options.
CarBahn has successfully engineered and manufactured the industry’s largest and most thermally efficient Heat Exchanger. By employing innovative design techniques, CarBahn has achieved a remarkable 40% increase in cooling capacity compared to existing Heat Exchangers in the market. Drawing inspiration from Formula 1 Heat Exchanger technology, CarBahn has integrated high-performance features and optimized flow dynamics to ensure unparalleled heat transfer efficiency. In addition to its superior thermal performance, CarBahn's race inspired design boasts a remarkable reduction in weight, thanks to the implementation of advanced lightweight materials and improved structural design.
Additionally, CarBahn offers an optional powertrain warranty for all their products, including the CPC.
If you wish to switch from the CarBahn Performance Controller to software in the future, there is an upgrade fee of $250. However, if you have purchased a warranty, it can be transferred to the software upgrade at no additional charge!!
Emissions Legality: Let us address the topic of removing the catalyst, commonly achieved through the utilization of downpipes. Our rigorous testing regimen involved conducting consecutive dyno runs with and without the catalyst, and the observed power gain was significantly smaller than commonly touted, typically around 2%. Nevertheless, it is important to acknowledge our shared responsibility towards environmental preservation, as clean air is vital to our well-being. Furthermore, obtaining the necessary emissions certifications without a catalyst is a daunting task and, from a legal standpoint, it is considered an infringement.
About Steve Dinan: With an illustrious career spanning over four decades, Steve Dinan stands as an authority in streetcar turbo tuning. Under his leadership, our team has triumphed in three prototype racing championships and secured two overall victories at the esteemed 24 Hours of Daytona in collaboration with Chip Ganassi Racing. Steve Dinan's unparalleled expertise solidifies our claim as the leading force in tuning high-performance engines.
