High Performance Coil-Over Suspension Kit (Non-EDC) | BMW M2 F87
Vehicle Fitment & Product Details
- Type Suspension & Chassis
- Make BMW
- Model(s) M2, M2 CS, and M2 Competition
- Vehicle Year(s) 2016, 2017, 2018, 2019, 2020, and 2021
- Chassis F87
- Body Style(s) Coupe
- Part Number CBF82-3139
Share on

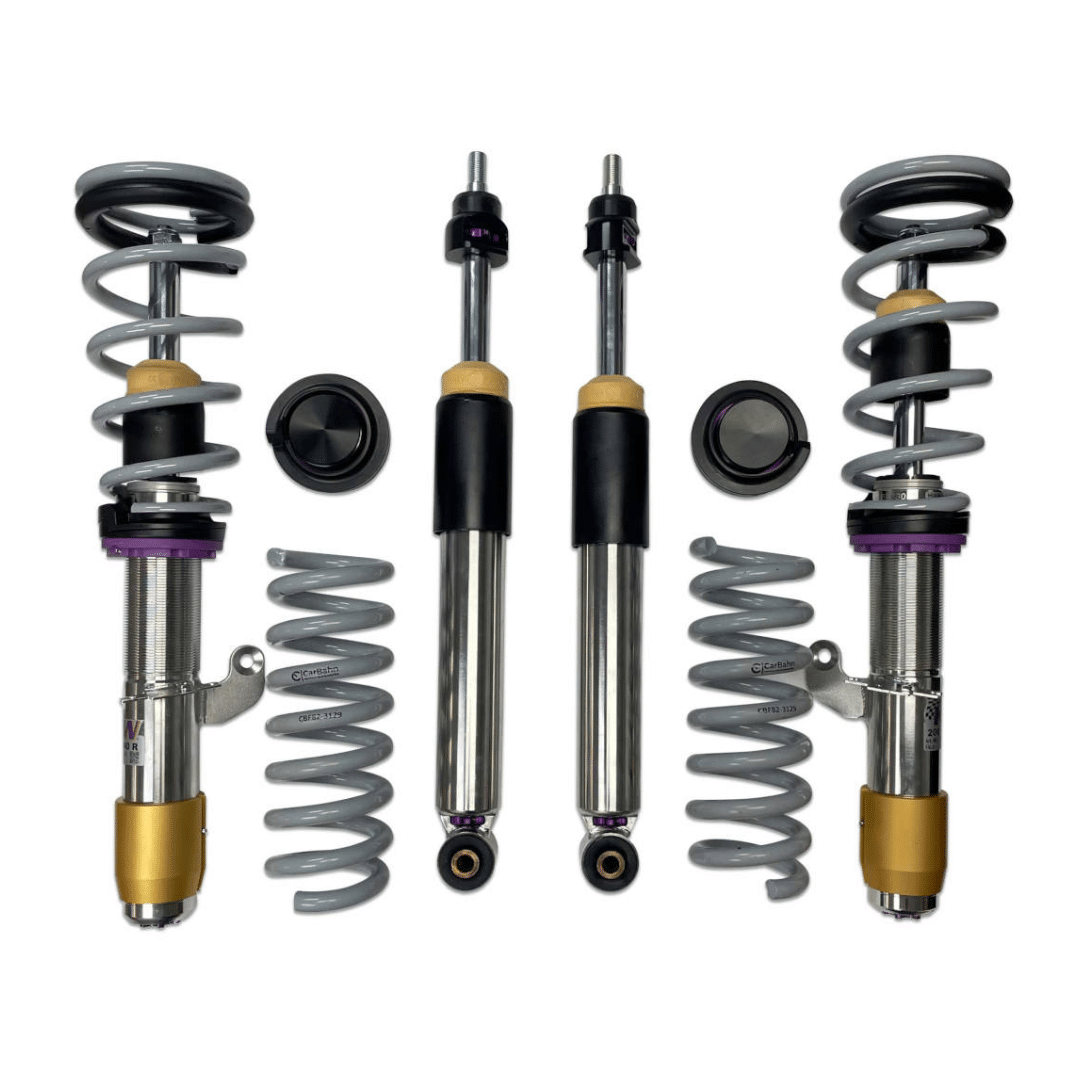

CarBahn is proud to present the much-awaited High-Performance Coil-Over Suspension System for the F87 M2, M2 Competition Coupe & M2 CS Coupe models.
Benefits of CarBahn’s Performance Coil-Over Suspension System:
The CarBahn KW Variant 3: Race technology for the road, with adjustable compression and rebound dampening. This suspension is unique when compared to the standard KW Variant 3.

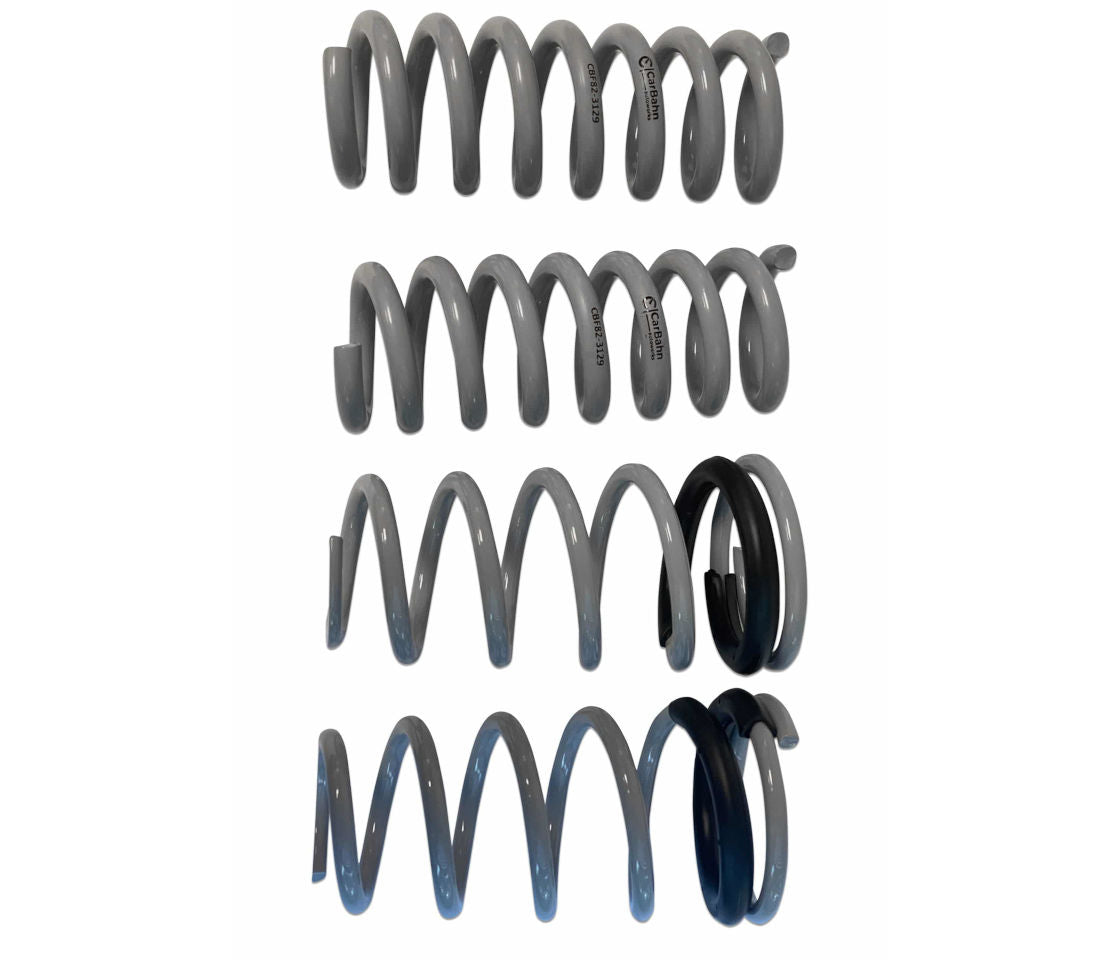

- The CarBahn KW suspension has stiffer front springs for support with bigger front tires and more negative camber.
- The rear spring is one piece to reduce noise and improve rear traction when vehicle is cornering hard, and you are trying to accelerate.

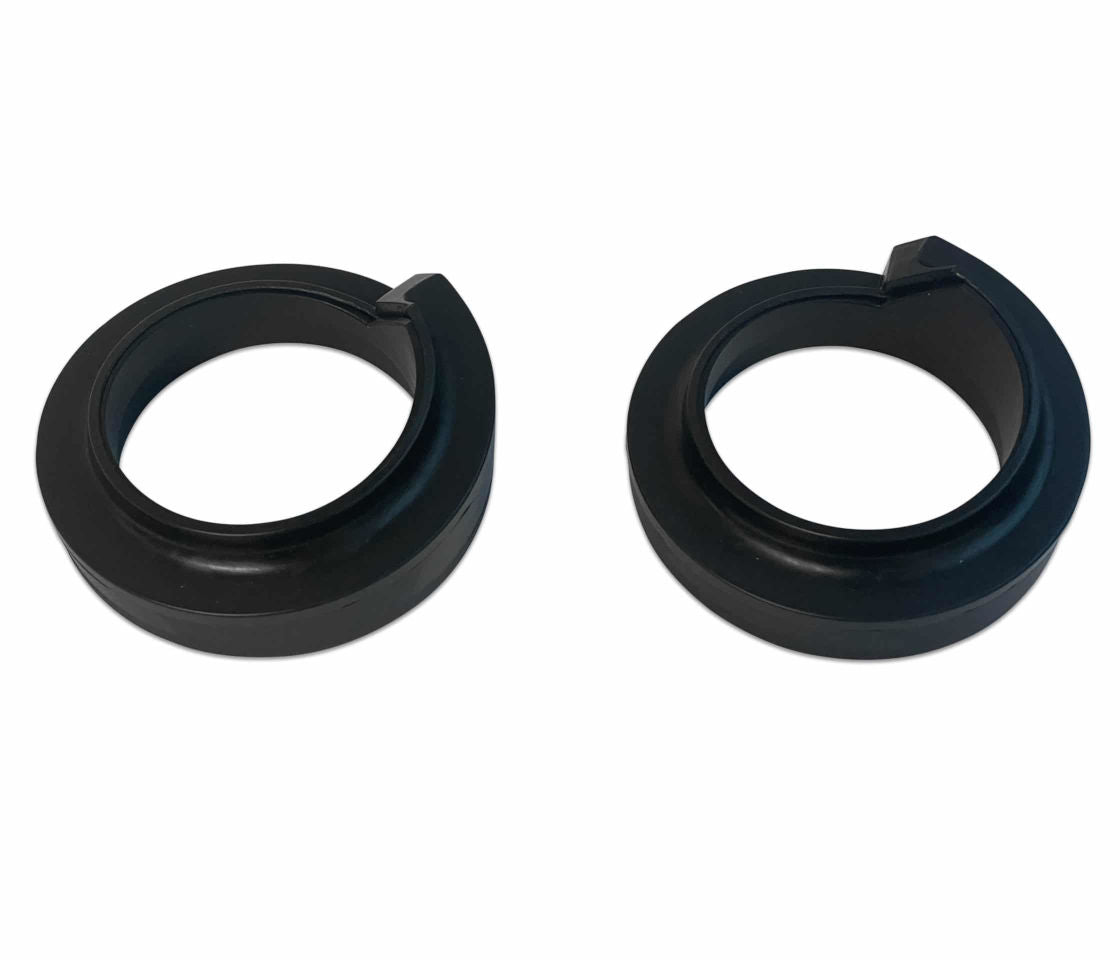

- Spring perches have rubber isolators to reduce road noise
- CarBahn has optional front control arm bearing
- CarBahn has optional high performance rear toe links
- Threaded collars allow easy and precise front & rear vehicle height adjustments.
- Up to 1.80″ of lowering is possible depending on tire clearance.
- Included suspension packers allow adjustment of bump-stop clearance to fine-tune handling and comfort.
- CarBahn-spec progressive bump stops improve ride quality at lowered ride heights.
*Note: Due to the extensive lowering possible, and the increased suspension travel, the installer must carefully evaluate tire clearance under all situations. Safety will be compromised if all precautions are not taken. CarBahn is not responsible for any property damage or injury.
Serious drivers will appreciate the ride, traction and control that is bestowed upon the vehicle from the improved suspension.
Estimated Installation Time: 10.00 hours (Includes ride height adjustment and excludes alignment)
