S65 4.5L Stroked And Bored Supercharger/Turbocharger Engine

Engine - | E90, E92, E93 | M3

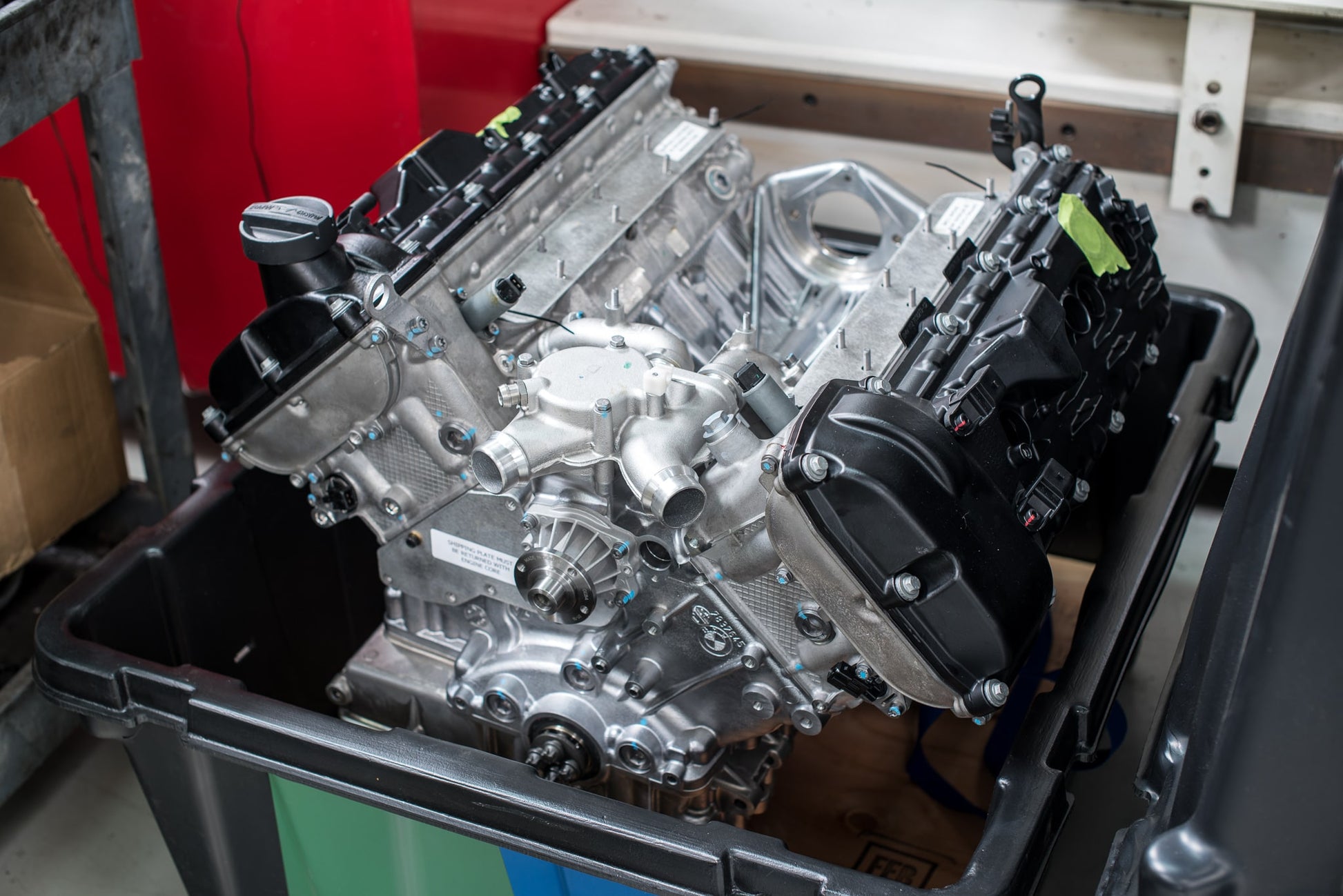

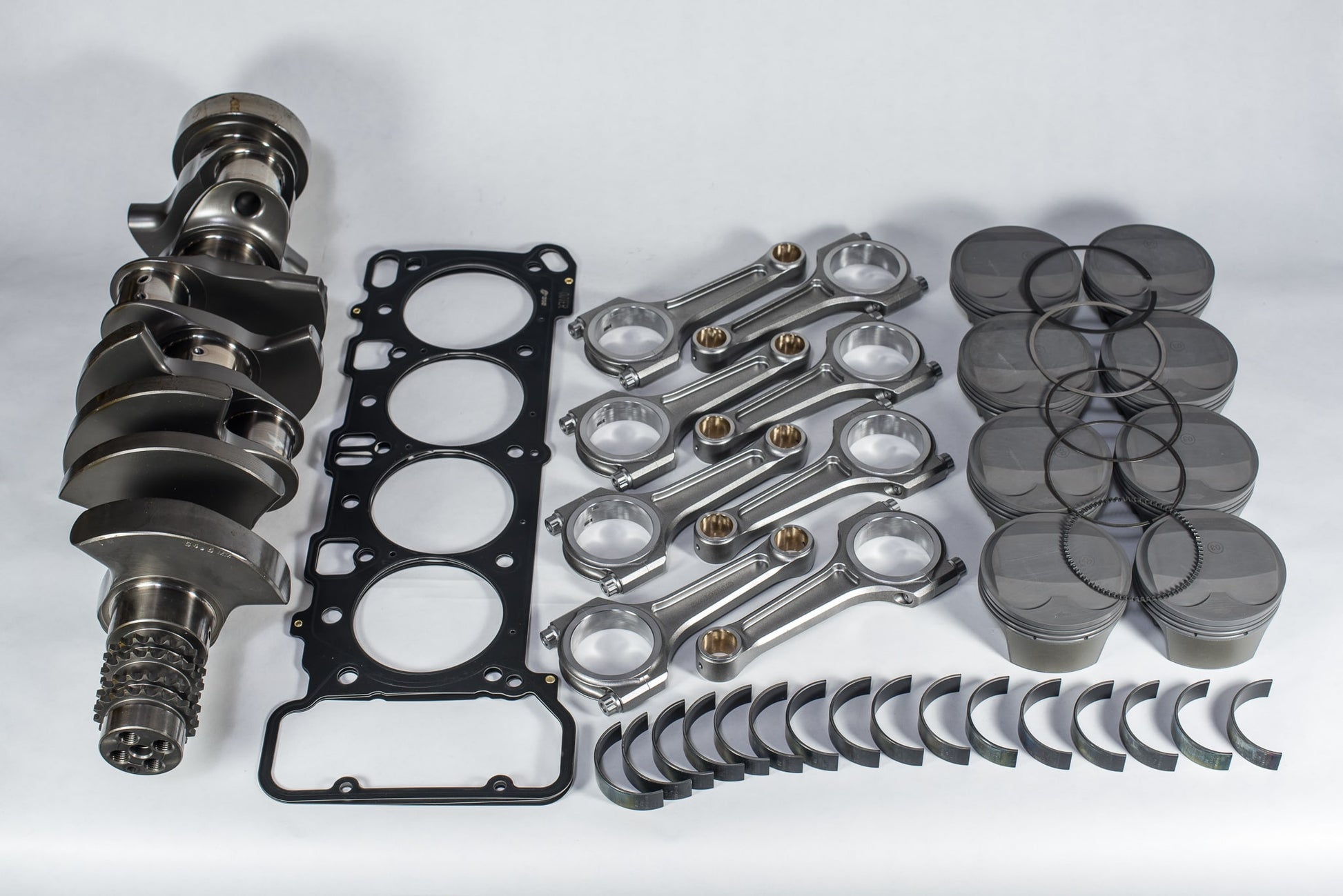

The CarBahn Autoworks S65 4.5L stroked and bored engine is built features high performance over-sized forged 92.5mm pistons, billet 83mm stroke crankshaft, and high-strength forged Carrillo connecting rods with CarBahn-Clevite racing rod bearings.

To facilitate more boost, the engine has been re-engineered to be a forced induction engine with lower compression, more crown height to dissipate heat, thicker rings, and stronger connecting rods. The kit can be purchased in 3 compression ratios: 10:0-1, 10.5-1, and 11:0-1.

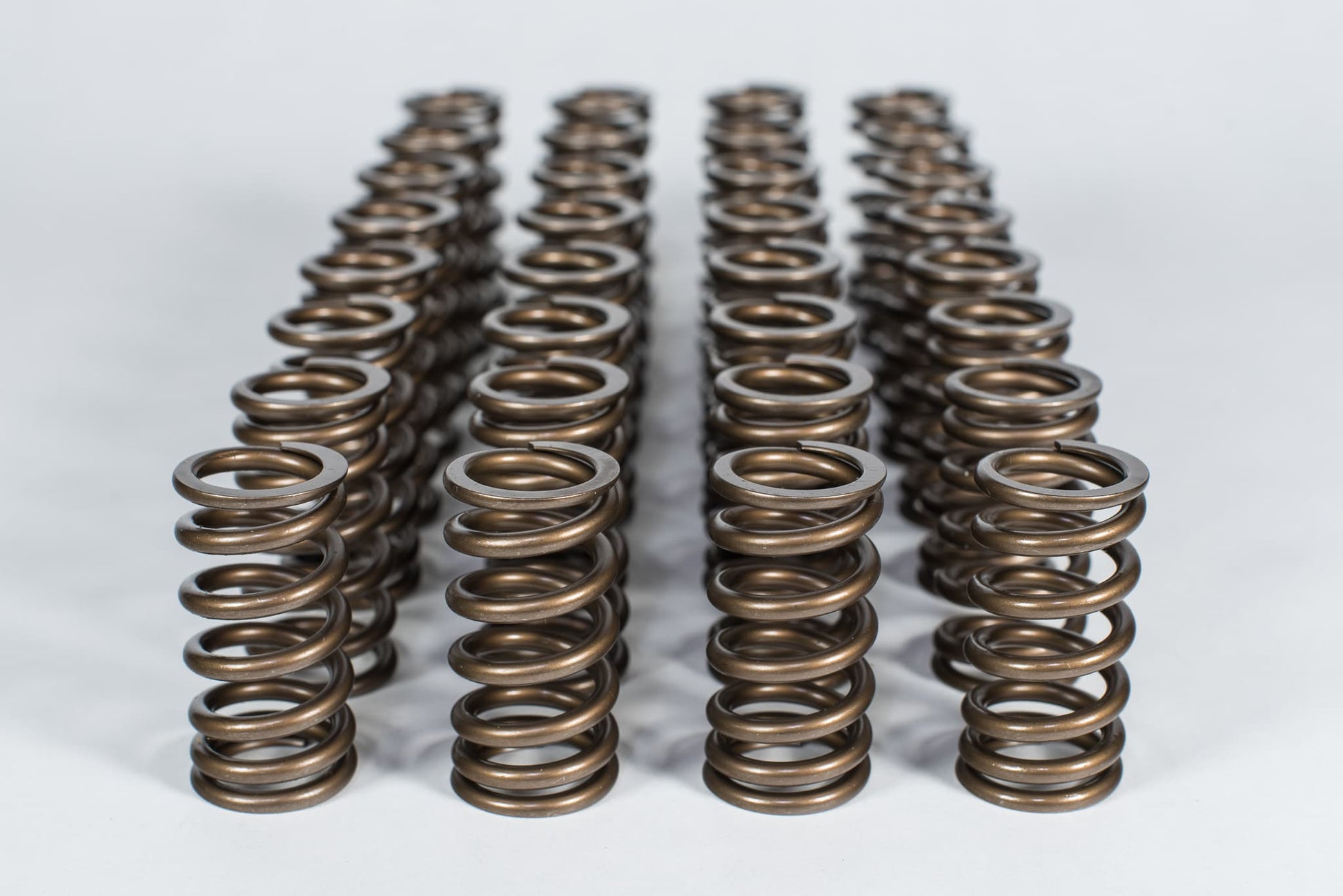

This complete rebuild that increases power and improves durability with Clevite-CarBahn racing rod bearings, CarBahn Autoworks valve springs, an MLS (Multi-Layer Steel) head gasket, a valve job with new hydraulic lifters, plus timing chains, timing chain guides, timing chain tensioners and all associated seals and gaskets.

History

Steve Dinan has been building high performance and racing engines for BMW s since 1977, winning 12 racing championships including 3 prototype championships and two 24 Hours of Daytona. The same engine shop that builds the racing engines also builds the street car engines; these talented engineers, machinists, and builders have built hundreds of engines from OEM street rebuilds to full-blown racing engines.

Engine core acceptance parameters

Must be complete core (factory engine, from oil pan to valve cover)

• Block must have no:
  • Holes or cracks in casting
  • Holes or crack in covers
  • Bore damage that cannot be honed out
  • Thrust surface damage
  • Journal surfaces damage
  • Bolt hole damage that can’t be repaired
• Heads must have no:
  • Holes or cracks in casting
  • Holes or crack in covers
  • Thrust surface damage
  • Journal surfaces damage
  • Bolt hole damage that can’t be repaired
• Additional repair charges could apply for damaged items that are not normally changed during an overhaul and cannot be repaired or serviced
  • Valves
  • Crankshafts
  • Camshafts
  • Guides
  • ValveTronic mechanism
  • Vanos mechanism

• Warranty & Additional Information
  Our engines are very strong and can often be very reliable even at power levels above what is recommended. The durability usually depends on the quality and the reliability of the tune and other aftermarket components added to the engine management system.

  • Engines with CarBahn Software Tunes
    All engines listed with a stage number are designed to be road car engines and are covered for 2 years, 24,000 miles providing they have a CarBahn tune and there are no other parts on the car that have caused a premature failure.
  • Engines with Another Company's Tune


    All engines listed with a stage number are designed to be road car engines and are covered are covered for 2 year, 24,000 miles providing they you stay under our recommended torque limits. Torque limits are indicated on our web site. Warranty does not cover failures from the tune or aftermarket fuel injection components that caused the failure. It is CarBahn full discretion to determine cause of failure. If Torque limit is exceeded the warranty is for materials and workmanship only.

  • Racing Engines
    Racing engines are designed to be raced and are covered for materials and workmanship only. Racing engines should be rebuilt periodically based on run time or mileage. Warranty does not cover failures from the tune or aftermarket fuel injection components that caused the failure. It is CarBahn full discretion to determine cause of failure.

Designed to be both stronger and more cost-effective than the BMW OEM factory engine, the CarBahn Engine benefits from Steve Dinan's 46 years of race engine-building expertise. His engines have powered multiple championship-winning cars, including three prototype racing titles and two overall victories at the 24 Hours of Daytona (2011-2013).
